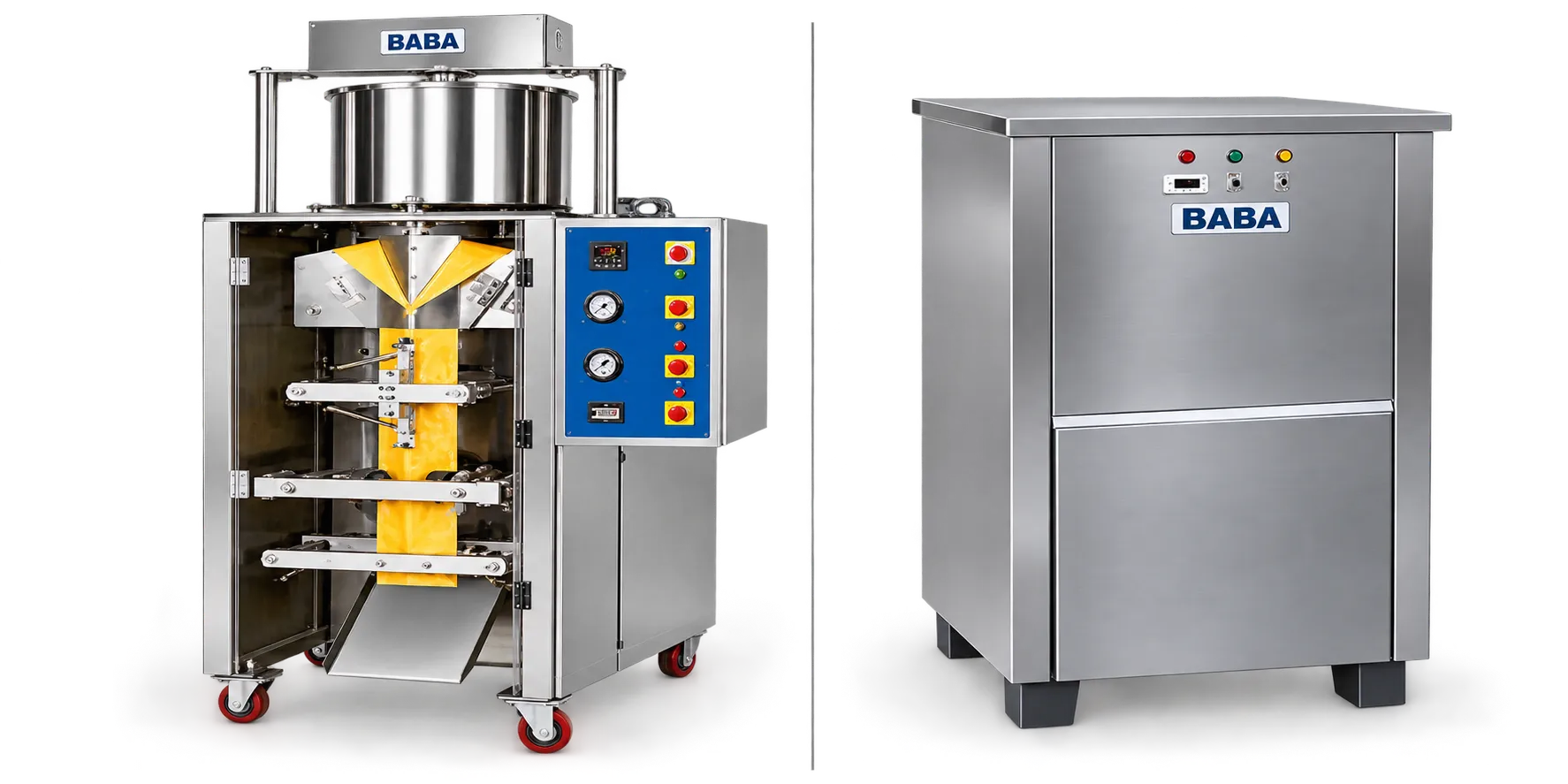

FULLY AUTOMATIC (MECHANICAL) GENERAL LIQUID PACKAGING SYSTEMS
——–LIQUID PACKAGING APPLICATIONS ——–
For Packaging of liquid such as Mineral Water, Milk, Soft Drinks, Lassi and Country Liquor. The system does not require any compressor or compressed air.
The machine is a technical marvel in its field, having a perfect engineering design as the input to this most perfect and most successful machine.
——– TECHNICAL SPECIFICATIONS ——–
Model -: BP-2000M (M.S. Body or S.S. Body)
Drive -: Fully Mechanical
Electrical -: 1.5 Kw, 220 Volt, Single Phase 50 c/s A.C.
Capacity -: 1500 to 2000 Pouches/hour
Film Width -: 230 mm & 335 mm
Pouch Length -: Maximum 150 mm
Liquid/Pouch 50 ml. to 500 ml.
Accuracy -: ± 5 ml.
Overall Dimensions -: H-2170 mm W-940 mm L-1130 mm
Weight -:300 Kg. (Approx.)
Batch Coding Device -:
Mechanical To Print MRP, Date of Mfg. etc.
Chiller ‘BABA’ -:make for cooling the Jaws. 20 ltr. capacity operates of 220 volts Single Phase 50 c/s A.C.

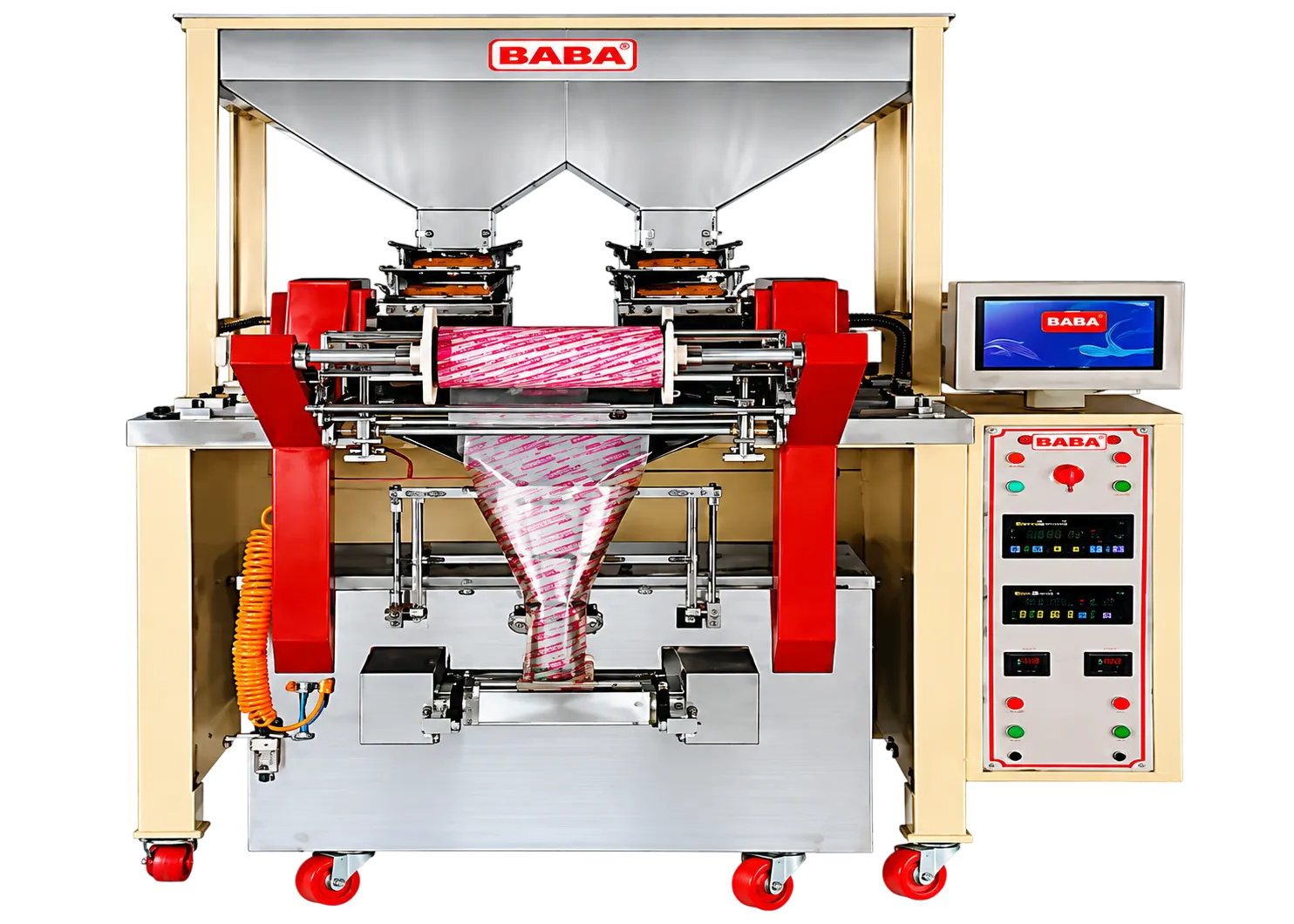

Weighmetric Packaging Systems
——– APPLICATIONS ——–
To Pack Potato Chips, Small Biscuits, Dry Fruits, Tea Dust, Snack Foods, Namkeens and other granular items of irregular shapes.
——– FEATURES ——–
• Inbuilt Nitrogen flushing & filling system for increased shelf life of the products (mainly for food products).
• A.C. Frequency drive for main motor for instant speed controls depending upon the Pouch / Bag size.
• Customer friendly design, easy to operate & maintain, mounted on caster wheels for easy shifting.
• Self diagnostic, computer controlled, fitted with 14″ colour monitor for packing parameters display.
• Noiseless vibratory feeders for Material / Product feeding into the weighing pan.
• All metal parts contacting with product are made of food grade stainless steel.
• Size change can be made in very short time by changing forming shoulder.
• Equipped with photo-electric control for eye mark registration.
• Bag makers of both Mechanical type & Pneumatic type.
• Inbuilt Lever Sensor
| Model | BPWM-1 (2 Track feeder) | BPWM-2 (4 Track feeder) |
|---|---|---|
| Packing Type | Three side, four side Pillow type (c/s) | Three side, four side Pillow type (c/s) |
| Packing Size | W 60 mm - 220 mm L 80 mm - 300 mm (Depending upon the bag volume) | W 60 mm - 220 mm L 80 mm - 300 mm (Depending upon the bag volume) |
| Packing Speed | 10 to 20 Pouch / Bag per min. | 20 to 40 Pouch / Bag per min. |
| Packing Material | olyester poly, Paper poly, Aluminium foil poly, & other Multi Layer Laminates | |
| Power | 220 Volts ± 5 Volts Single Phase 50 C/S A.C. Power | 220 Volts ± 5 Volts Single Phase 50 C/S A.C. Power |
| Dimensions (L x W x H) | 1200 x 1150 x 2500 | 1200 x 1450 x 2650 |
| Weight (Approx) | 800 Kgs | 1000 Kgs. |
We also manufacture Combination Weighing Multi Head computerized Weigher upto 8 heads.
——– APPLICATIONS ——–

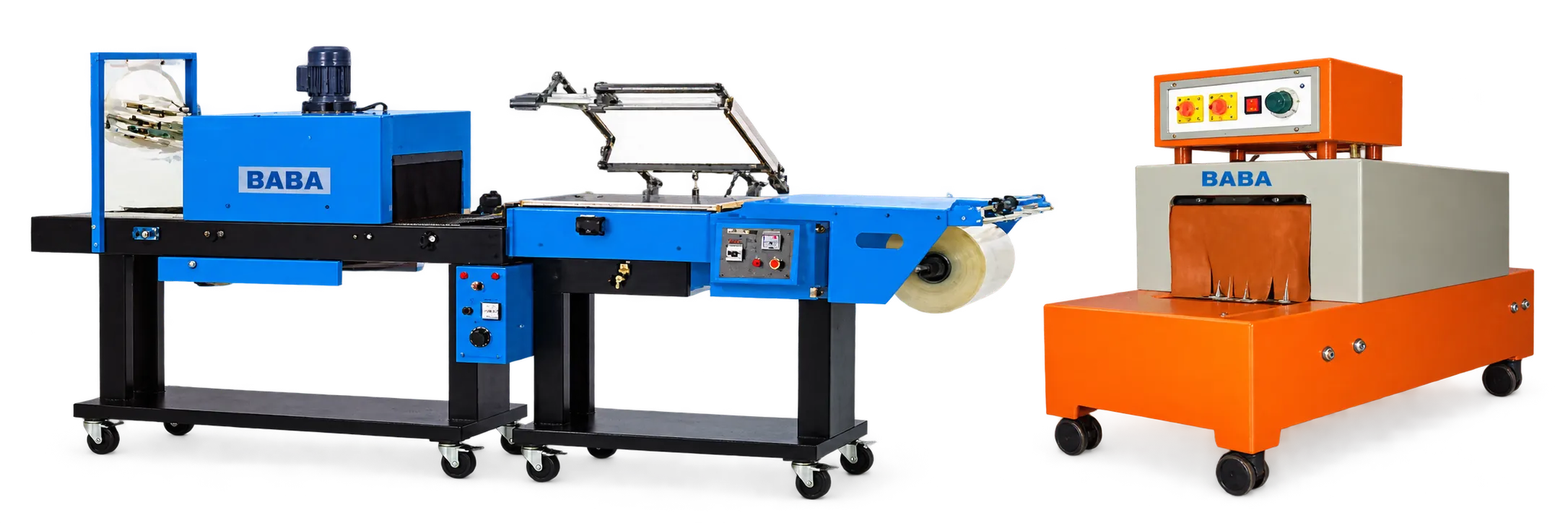

Shrink Packaging Systems are one of the widely accepted Tamper Proof Packing methods for a variety of consumer products such as dry fruits packing and industrial products packing. It provides neat and presentable with sales appeal and gives Complete Protection to the product form moisture and dust, which enhances shelf life of the product. Shrink packaging systems sometimes also known as dry fruits packing machine.
——– TECHNICAL SPECIFICATIONS ——–
| Model | BP-1008 |
|---|---|
| Seal Dimensions | 15" x 20" |
| Tunnel Size | 15" W x 6" H x 20" L |
| Power Requirement | 220V S.P |
| Power Consumption | 2 kw |
| Machine Dimensions | 82"L x 24"W x 44"H |
——– FEATURES ——–
• Combination unit system runs on one circuit
• Magnetic Hold Down
• Works with all types of shrink films, but specially tuned for non PVC, polyolefin films.
• Temperature compensating Solid State Controller.
• High Velocity turbo tunnel.
——– TECHNICAL SPECIFICATIONS ——–

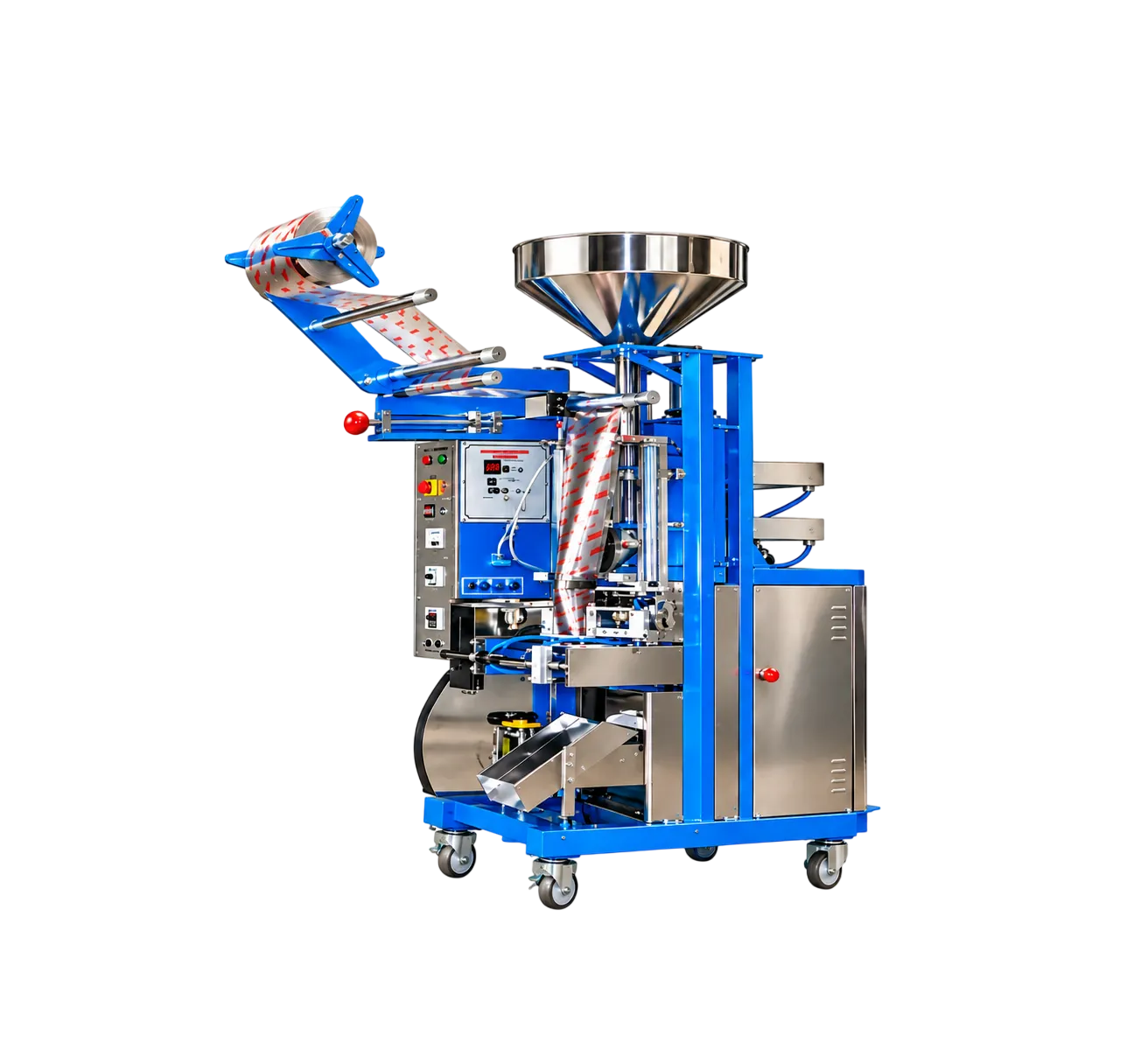

| Sealing Type | 3 Side Sealing / 4 Side Sealing / Centre Sealing (On request) |
|---|---|
| Packaging Size | L: 40-120 mm or 100-240 mm (Pouch Length) W: 20-160 mm or 20-220 mm (Film Width) (Enlarged type can be made on order) |
| Packaging range | 3-5 gm, 5-30 gm, 30-50 gm, 50-100 gm, 100-250 gm, 250-500 gm (Depending on Specific Gravity of Material to be packed) |
| Packing Material | Any heat sealable laminated film such as Polyester / Poly Paper / Polly Glassine / Poly Polyester / Met / Foil / Poly BOPP / Foil / Poly etc. |
| Speed | 10-50 Bag per minute |
| Motor | 1/2 H.P., 220 V / Single Phase / 50 Hz |
| Heater Load | 3 Side Sealing / Centre Sealing (150 W x 2 Nos., 300W x 2 Nos.) 4 Side Sealing (300 W x 4 Nos.) |
| Air Requirement | 6 CFL @ 6 Bar |
| Machine Dimensions | 750 x 560 x 1750 (mm) (L x W x H) |
| Net Weight | 380 Kilograms (appx.) |
| Optional | Codding Device Belt Conveyor Batch Cutting Device Bucket Elevator Nitrogen Flushing Arrangement Level Sensor Device Ultra Violet System Static Charge Eliminator Servo Stabilizer |
Operations of vacuum packing machines:
As soon as you press down the vacuum case lld the machine automatically starts the process of vacumisation, sealing and flushing (Optional).
Application :
The packed product is prevented from oxidation, rusting, moulding, dampness and insect infestation. This helps prolong the product
storage period. Also useful to detect integrity of the peck seal.
Areas:
Food, Pharma, Engineering goods medical disposables, Electronic goods etc.
——– SPECIFICATIONS ——–
| Model | DZ-260/PD | DZ-400/2E | DZ-500/2E | DZ-400/2SA | DZ500/2SB |
|---|---|---|---|---|---|
| voltage | 220v/50HZ | 220v/50HZ | 220v/50HZ | 380v/50HZ | 380v/50HZ |
| Heating power | 220W | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Vacuum Pump Capacity | 10m3/H | 20m3/H | 20m3/H | 40m3/H | 40m3/H |
| Vacuum Pressure | <1.0KPA | <1.0KPA | <1.0KPA | <1.33KPA | <1.33KPA |
| Vacuum Chamber Vol. (mm) | 385x280x120 | 440x420x100 | 530x525x100 | 500x450x110 | 580x550x110 |
| Sealing Length (mm) | 260x10 | 400x10 | 500x10 | 400x10 | 500x10 |
| No. of Heat Strips | 1 | 2 | 2 | 4 | 4 |
| Dimensions | 480x330x360 | 540x480x1010 | 580x650 | 1250x680x690 | 1260x780x960 |
| Weight | 35kg | 100kg | 125kg | 22kg | 22kg |
